M10-AD158
Details

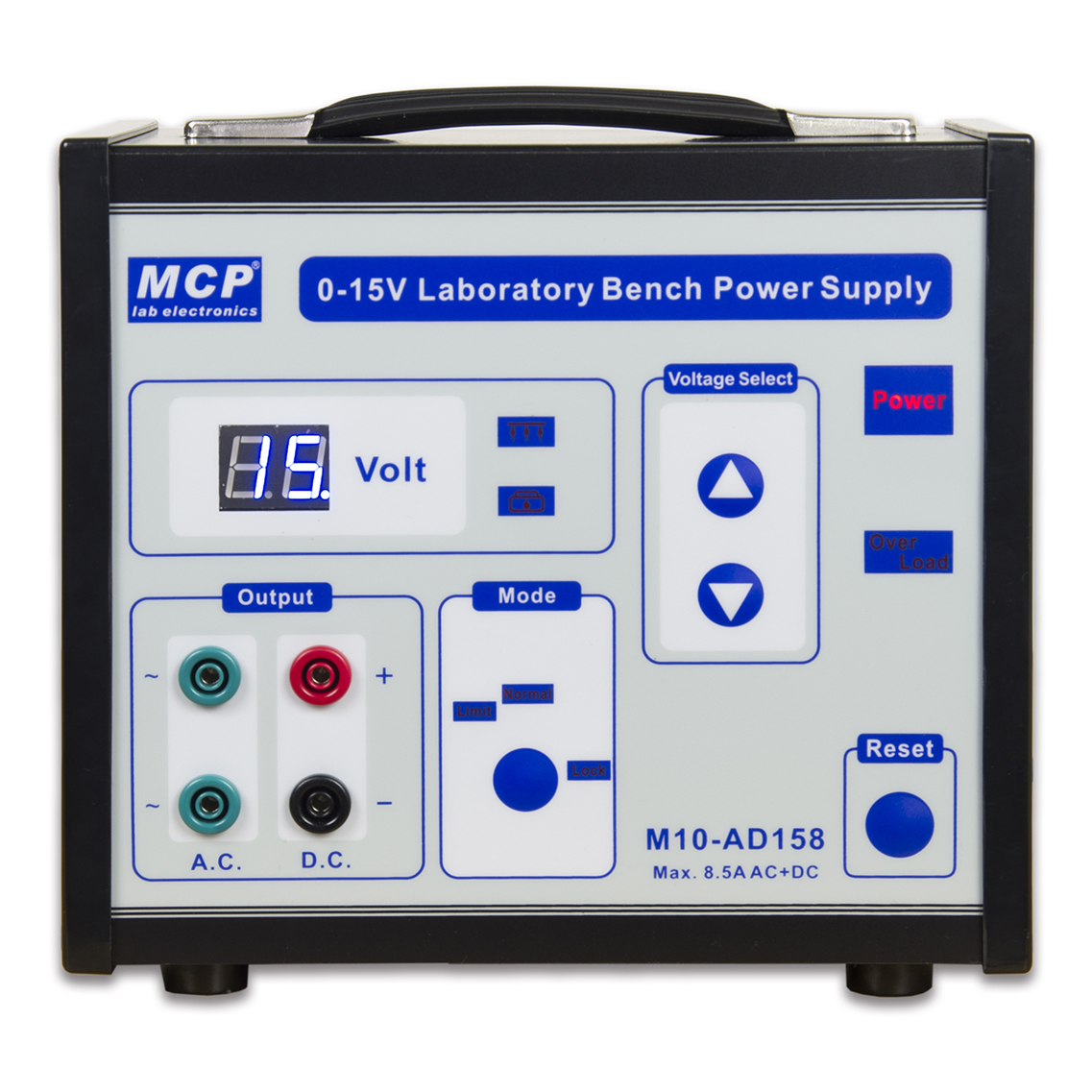

M10-AD158
AC & DC POWER SUPPLY


Features

. Stepped voltage of 0-15V in one volt step for both AC and DC

. DC slightly smoothed

. Special key lock function

. Maximum (ceiling) voltage settable

. Digital output voltage display

. AC or DC continuously rated output of 8.5A, or added sum of 8.5A

Specifications


DC output voltage: 0~15V (1V step)

DC output current: 8.5A


AC output voltage: 0~15V (1V step)

AC output current: 8.5A

Input voltage: 220~240VAC ±10%, 50Hz or 110~127±10%, 60Hz

Dimensions (W x H x D): 220mm×203mm×122mm

Weight: 3.5kg
